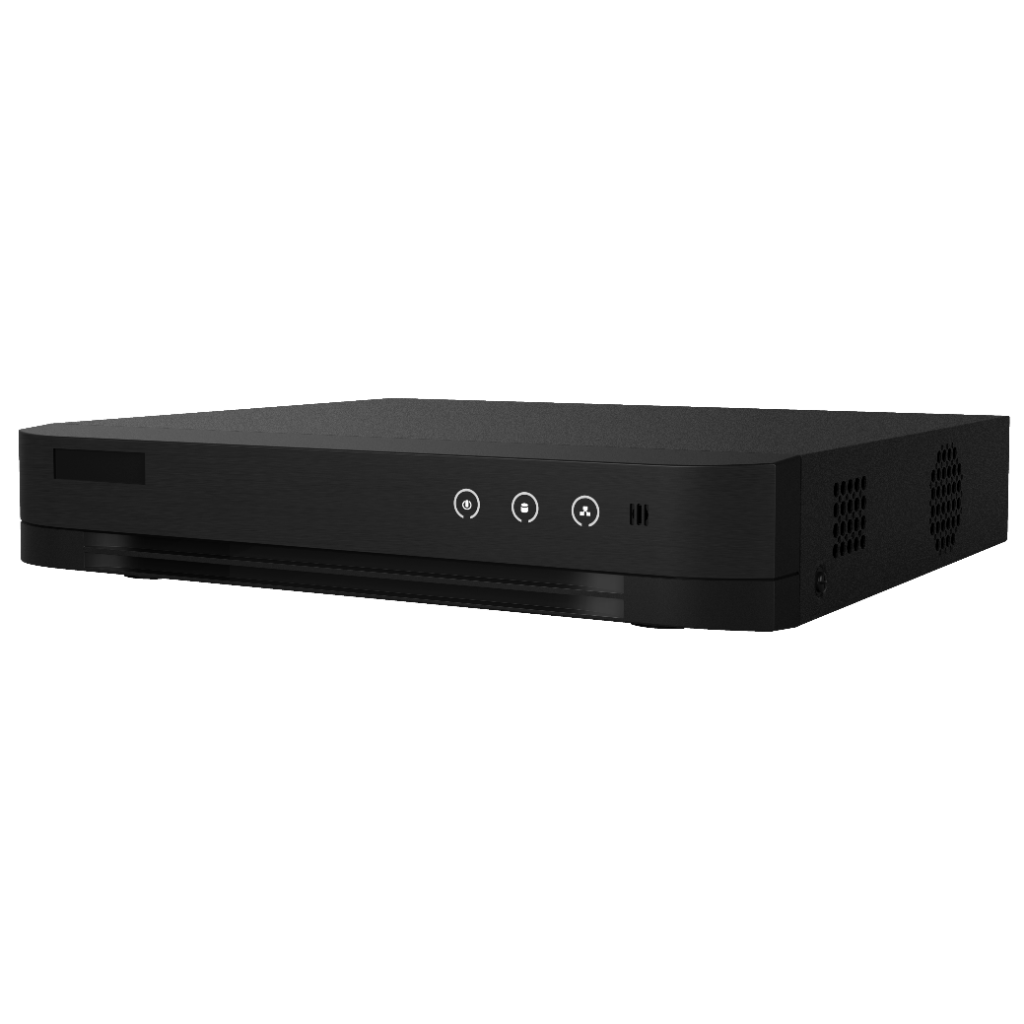

DVR 4 CHANEL HIKVISION DS-7204HQHI-K1/E

Sebelum melakukan pemesanan, mohon hubungi Admin terlebih dahulu untuk konfirmasi ketersediaan stok dan harga terbaru (harga dapat berubah sewaktu-waktu), serta khusus pengambilan langsung di toko fisik dapat dibantu dengan sistem DP sebagai tanda jadi.

• Recording
• Encoding resolution

  When 1080p lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Video bit rate32 Kbps to 6 Mbps
• Frame rate

  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Audio compressionG.711u
• Audio bit rate64 Kbps

• Video and Audio
• Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
• Audio output1-ch, RCA (Linear, 1 KΩ)
• Synchronous playback4-ch
• IP video input

  1-ch (up to 5-ch)

  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

• HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
• HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS inputPAL/NTSC
• Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS outputN/A
• HDMI/VGA output

  HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output

  VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Network
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote connections32
• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary interface
• CapacityUp to 10 TB capacity for each disk
• Serial interfaceN/A
• USB interface2 × USB 2.0
• Alarm in/outN/A
• SATA1 SATA interface

• General
• Consumption(without HDD)≤ 5 W
• Working humidity10% to 90%
• Power supply12 VDC
• Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weights (without HDD)≤ 1.6 kg (3.5 lb)
